API Spec Grade 2HGr42/50 Offshore Platform Steel Plate

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time:only one week for stock, customized products according to order negotiation.
Loading Port:Shanghai ,Qingdao,Tianjin .
payment terms:By T/T or L/C.
Supply capacity:5000MT/month.
MOQ: According to order negotiation.

Inquire Now Chat Now

PRODUCT DESCRIPTION

API Spec Grade 2HGr42 Offshore Platform Steel Plate Chemical Composition

Grade	C	Mn	P	S	Si	Nb	Ti	Al	N	V
2HGr42	0.18	0.90-1.35	0.03	0.01	0.05-0.40	0.04	0.02	0.02-0.06	0.012	d

API Spec Grade 2HGr42 Offshore Platform Steel Plate Mechanical Property

Grade	Yield Strength,kis (Mpa) min	Tensile Strength,kis (MPa)	Elongation (%)min
2HGr42	t≤2.5in 42(289)	62-82(427-565)	2in.(50mm) 22
t≥2.5in 42(289)	8in.(200mm) 18

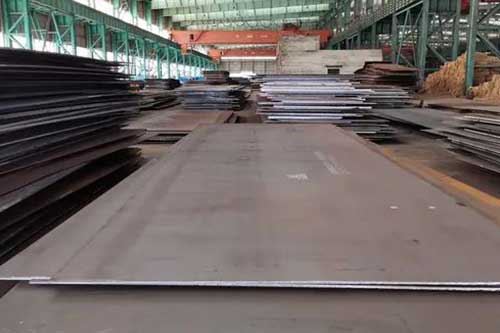

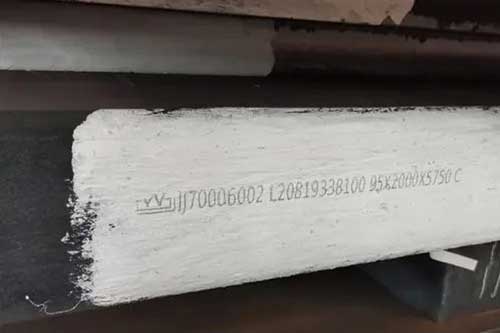

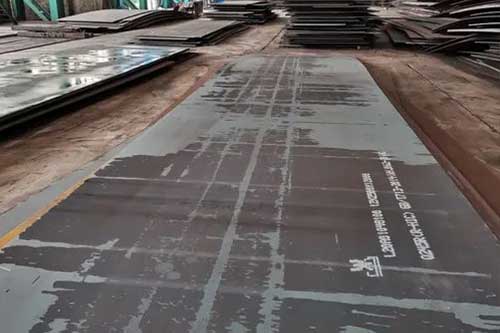

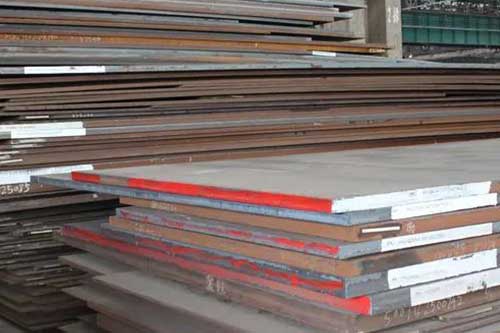

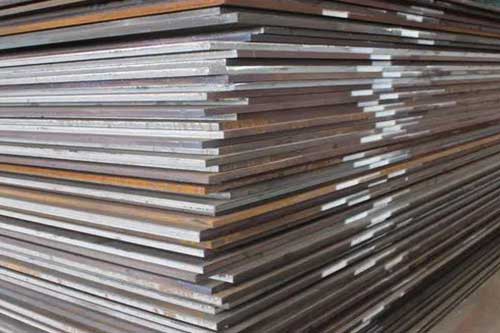

Product Images

API Spec Grade 2HGr42 Offshore Platform Steel PlateAPI Spec Grade 2HGr42 Offshore Platform Steel Plate Application

API Spec Grade 2HGr42 Offshore Platform Steel Plate is mainly used to Offshore Struc

API Spec Grade 2HGr42 Offshore Platform Steel PlateAPI Spec Grade 2HGr42 Offshore Platform Steel Plate Other Name

API Spec Grade 2HGr42 Offshore platform Steel plate , API Spec Grade 2HGr42 Offshore Structural Steel Plate,API Spec Grade 2HGr42 drilling platform Steel plate , API Spec Grade 2HGr42 Welding Structural Steel Plate

API Spec Grade 2HGr42 Offshore Platform Steel PlateAdditional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.
