ASTM A36 Carbon structural steel plate

Packaging Details: Standard export seaworthy packing or as required.
Delivery Time:only one week for stock, customized products according to order negotiation.
Loading Port:Shanghai ,Qingdao,Tianjin .
payment terms:By T/T or L/C.
Supply capacity:5000MT/month.
MOQ: According to order negotiation.

Inquire Now Chat Now

PRODUCT DESCRIPTION

Product Images

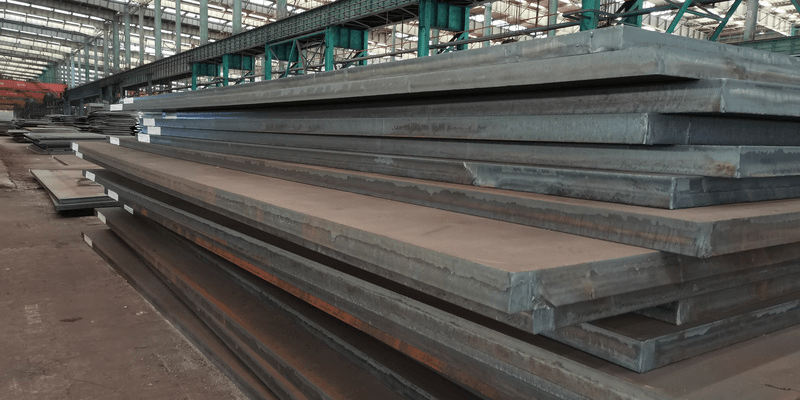

ASTM A36 Carbon Steel Plate

Product Images

ASTM A36 Carbon structural steel plate Chemical Composition

ASTM A36	Shapes	Plates					Bars
thickness, in. [mm]	All	to¾ [20], incl	over ¾ to 1½ [20~40], incl	over 1½ to 2½ [40~65], incl	over 2½ to 4 [65~100], incl	over 4, [100]	to¾ [20], incl	over ¾ to 1½ [20~40], incl	over 1½ to 4 [100], incl	over 4, [100]
C, max	0.26	0.25	0.25	0.26	0.27	0.29	0.26	0.27	0.28	0.29
Mn	---	---	0.80-1.20	0.8-1.20	0.85-1.20	0.85-1.20	---	0.60-0.90	0.60-0.90	0.60-0.90
P, max	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04	0.04
S, max	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05
Si	0.40 max	0.40 max	0.40 max	0.15-0.40	0.15-0.40	0.15-0.40	0.40 max	0.40 max	0.40 max	0.40 max
Cu, min	0.20_	0.20_	0.20_	0.20_	0.20_	0.20_	0.20_	0.20_	0.20_	0.20_

ASTM A36 Carbon structural steel plate Mechanical Property

Plates,Shapes,and Bars:	Tensile strength,ksi [MPa]	58-80 [400-500]
Plates,Shapes,and Bars:	Yield point,min,ksi [MPa]	36 [250]
Plates,and Bars:	Elongation in 8 in.[200 mm], min,%	20
Plates,and Bars:	Elongation in 2 in.[50 mm], min,%	23
Shapes:	Elongation in 8 in.[200 mm], min,%	20
Shapes:	Elongation in 2 in.[50 mm], min,%	21

Product Images

ASTM A36 Carbon structural steel plate Application

ASTM A36 steel plate is widely used for engineering construction such as factory buildings, roads, bridges, various mechanical equipment manufacturing and steel structural parts.

ASTM A36 pecification range:

thickness 6-700mm, width 1500-5000mm, length 3000-27000mm

ASTM A36 ULTRASONIC TEST Executive Standard:

NB/T47013 JB/T4730，GB/T2970，EN10160，SEL072，JIS G 0801，ASTM A578/A578M，ASME SA578/SA578M

ASTM A36 Carbon structural steel plate State of Delivery:

AR=AS HOT ROLLED. N=NORMALIZED. Q=QUENCHED. T=TEMPERED. A=ANNEALED. CR=CONTROLLED ROLLED.TMCP=THERMO MECHANICAL CONTROL PROCESS.Z-DIRECTION TENSILE(Z15,Z25,Z35),The Third Party Test, Coated or Shot Blasting and Painting.

According to the customer's required work piece requirements, CNC cutting is carried out according to the drawing programming. For example, large flanges, bearing seats, heavy equipment bases, supports, rolling mill housing components processing, etc.
